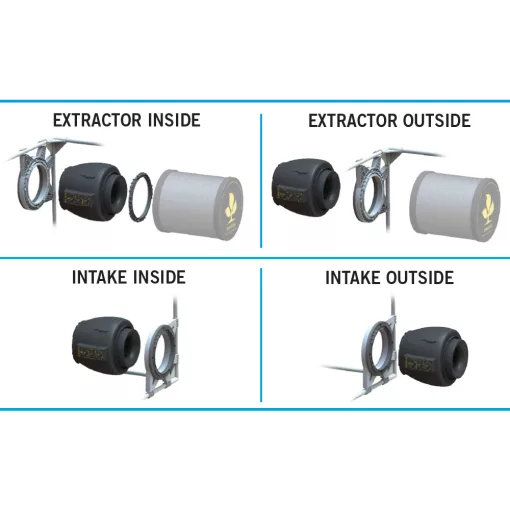

The new Secret Jardin DF16 EC exhaust fan with smart click function can be mounted on the duct flange system in seconds and without additional tools. It is intended for use in combination with the SecretJardin activated carbon filters CTC80. The EC fan can also be connected to other standard filters using a connection for the pipe flange and the corresponding rubber hoses. The fan is equipped with a temperature control function and two heat sensors (inside or outside). A high-quality EC motor (24V-40W) is also installed. The housing is made of flame-retardant, glass fiber reinforced polyamide (PA66 + 15% GF V0).

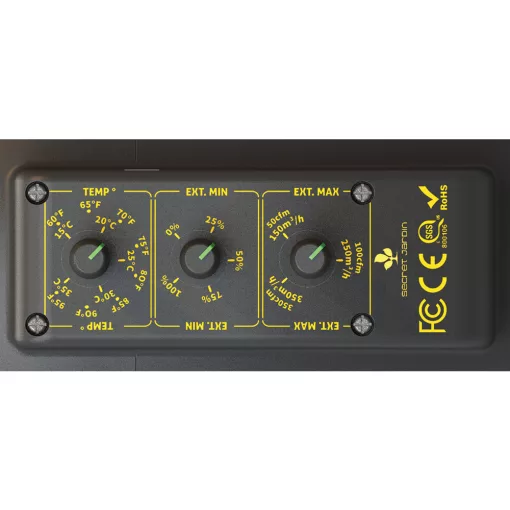

Setting the control devices:
1. Select the desired target temperature (TEMP°). The EC fan regulates the temperature with a deviation of +/- 2°C.
2. Select the minimum exhaust air speed (EXT. MIN). So that the air can be extracted even at low temperatures.
3. Select the maximum exhaust air speed (EXT. MAX). Depending on the growing area (see technical data).
Integrated and external temperature sensor
If the 2nd temperature sensor (external) is connected, the integrated sensor is switched off. So when you use the integrated temperature sensor, the EC fan runs at a minimum speed of 5%.
Volume test:
The measurement was taken 70cm in front of the tent without a silencer.
- max. level 150m3/h: 36 dB
- max. level 250m3/h: 54 dB
- max. level 350m3/h: 61 dB
Recommendation:
- Level 150m3/h for a grow tent up to 60x60x160cm, recommended carbon filter DF16150.
- Level 250m3/h for a grow tent up to 100x100x200cm, recommended carbon filter DF16250.
- Level 350m3/h for a grow tent up to 120x120x200cm, recommended carbon filter DF16350.
Details:
- Compatible with all Secret Jardin grow tents
- 3-speed EC fan with 150/250/350 m3/h performance
- Temperature control function and 2 heat sensors (integrated and external)
Assembly without tools in secods

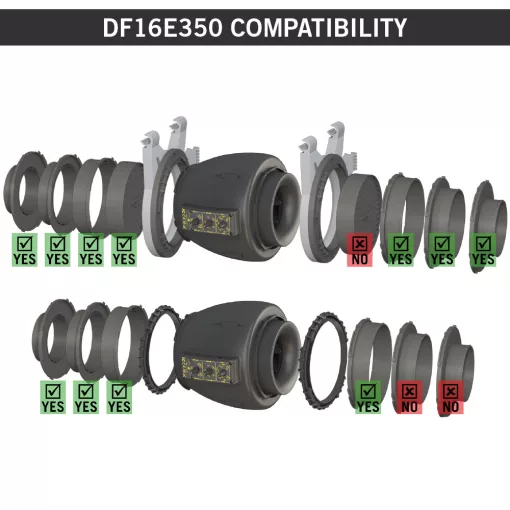

- Connection to different flange sizes possible
Technical data:
- 3 levels: 150/250/350 m3/h
- Consumption: 35W
- Current: 1.5A
- Voltage: 110-220V
- Frequency: 50/60Hz
- Ambient temp.: min. 0°C/max. 40°C
- Dimensions (LxWxH): 25x25x21cm
- Protection class: IP54
- Power cord length: 60cm
- Length of the 2nd sensor cable: 240cm
- Weight: 1.5kg
Contains:
Adapter DF16 ring
2. Thermal sensor (external)
24 volt power supply, EU, UK and US adapters
An activated carbon filter is not included and must be ordered separately.
